研究设施
-
国家研发项目的历史
开展项目促进经济合作业务（商业，工业和能源部）
开发定制薄膜和丁基共聚物原料（4月20〜2020年）
完成中小企业的业务开发技术开发事业（中小企业厅）
开发聚丁烯-1树脂扩大应用的催化剂和添加剂（2011. 11~2012。10）
终止项目以传播零件和材料的可靠性技术（韩国工业技术开发署）
提高聚丁烯-1树脂的可靠性（2009.9~2011.8）
与工业 - 学院 - 研究所合作，由研究所（中小企业厅）支持
提高聚丁烯-1力学性能的研究（2009.6~2012。5）
新产品开发
PACKING MATERIALS
■ EASY PEEL FILM
由于温度均匀的剥离负荷，因此易于剥离
■ Method of peel force control
知识库
PB-1 Random-copolymer
| Grade-name | YBPC-01 | YBPC-02 | YBEC-01 | YBEC-02 | ||
|---|---|---|---|---|---|---|
| Monomer | C4/C3 | C4/C3 | C4/C2 | C4/C2 | ||
| Melt Flow Index (190°C / Load 2.16kg) |
g/10min | ASTM D 1238 | 4 | 4 | 1 | 4 |
| Tensile Strength at Break | MPa | ASTM D 638 | 40 | 45 | 51 | 49 |
| Elongation at Break | % | ASTM D 638 | 580 | 460 | 420 | 450 |
| Melting Temperature | °C | ASTM D 3418 | 58 | 100 | 110 | 100 |
| Application | Heat seal | Heat seal | Easy peel | Easy peel | ||
1. Copolymer is 1-butene based polymer. It is compatible with PE and PP, offering unique functions in both PE and PP based products
2. Copolymer is dispersed in PE with domain size of a few microns, which ensures stability of easy-peel property. Heat seal strength of film can be easily controlled.
3. Copolymer is also utilized as a modifier to improve low temperature heat sealability of PP films due to its compatibility and low melting point.
PLUMBING MATERIALS
| PB-1 | PP-R | PE-X | PVC-C | |
|---|---|---|---|---|
| Pipe OD, mm | 40 | 40 | 40 | 40 |
| Pipe ID, mm | 32.6 | 26.6 | 29.0 | 31.0 |
| Pipe wall thickness, mm | 3.7 | 6.7 | 5.5 | 4.5 |
| Standard Dimension Ratio | 11 | 6 | 7.3 | 9 |
| Pipe inner section area, mm2 | 835 | 556 | 661 | 755 |
| Flow speed @ 2 L/s, m/s | 2.4 | 3.6 | 3.0 | 2.6 |
| Pressure loss@ 2L/s, mbar/m | 18 | 50 | 33 | 24 |
| Ratio of Linear pipe weight | 1 | 1.66 | 1.44 | 1.57 |
ADVANCED MATERIALS
■ WIRE FILER
| FILLER | STRESS TEST | Affinity with surface treatment agent |
|---|---|---|
| Impact PP | Good | Bad |
| PB-1 | Excellent | Good |
■ Fiber
| TEST ITEMS | Unit | PET | Nylon 6 | PBT | PB-1 |
|---|---|---|---|---|---|
| Melting temperature | ℃ | 255 | 220 | 225 | 125 |
| Tensile strength | g/de | 2.5~5.0 | 4.5~5.5 | 4.75 | 4.22 |
| Elongation | % | 22.3 | 45.5 | 38.3 | 36.6 |
| 伸长率 | % | 0.28 | 1.28 | 0.86 | 1.02 |
| 伸长模量 | % | 71.4 | 83.9 | 90.5 | 92.5 |
多四
单公司

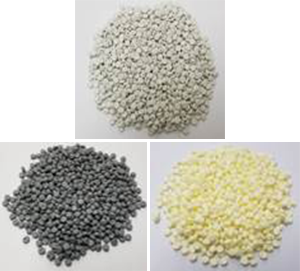

■ Color Figment
Excellentfiller loading property Developing various color pigment
ADVANCED MATERIALS
■ Wood Fiber-Excellent filler loading property
- WF/PB-1
表面改善 - 与其他树脂相比，可以防止高分散和燃烧（纤维降解）
- PB-1 耐用性
（1）低温处理 - 表面改善，WF燃烧气味减少（螺旋测试确认）
（2）改善流动性和分散性
（3）降低挤出压力，增加WF含量
